Description

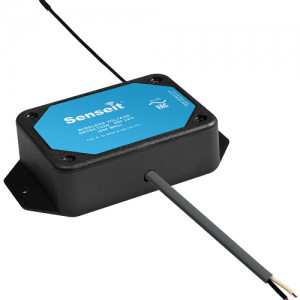

The Senseit Voltage Detector – 50 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 50 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as “Voltage Detected” or “No Voltage”.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 – 3.6 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
What does this wireless sensor’s data look like in software?
Product Features
- Interfaces with other devices or power lines up to 50 volts DC.
- Max sensor input voltage up to 50 volts DC.
What’s in the box?
- Wireless Sensor
- Mounting Hardware
- 2 x AA Batteries
Voltage Detection Sensor Specifications
| Maximum Rated Input Voltage | Up to 50 Volts DC |
| Minimum Rated Input Voltage | -50.0 Volts |
| Voltage Detection Threshold | Present above ~.47 Volt, Absent below ~.47 Volt |
| Trigger | Transmits Data on State Change |
| Open Circuit Reading | Voltage Absent |
AA Specifications
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
- Appliance monitoring
- Sprinkler system monitoring
- HVAC system monitoring
- Line power monitoring
- Power coupling monitoring
- Power supply monitoring
- Sump pump monitoring
