Description

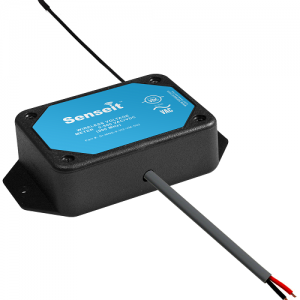

Senseit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC/VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Senseit sensor is really just a “voltage observer”.
Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.
WARNING: Use caution when interfacing to the Senseit Wireless Voltage Meter. Negative voltages, any kind of AC Voltages, or DC Voltage exceeding 600V WILL DAMAGE the electronics of the Senseit Wireless Sensor. Senseit is not responsible for troubleshooting, replacing or reimbursing damages incurred by disregarding this warning.
What does this wireless sensor’s data look like in software?
Product Features
- Interfaces with devices and power supplies up to 500 VAC/VDC
- Max sensor input voltage up to 600 volts (will return a max of 500 volts in software)
What’s in the box?
- Wireless Sensor
- Mounting Hardware
- 2 x AA Batteries
Voltage Meter Specifications
| Maximum Rated Input Voltage | Up to 600 VAC/VDC (will return a max of 500V in software) |
| Full Scale Voltage | 0 - 500 VAC/VDC |
AA Specifications
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
- Appliance monitoring
- Line power monitoring
- Power coupling monitoring
- Power supply monitoring
- Sump pump monitoring
